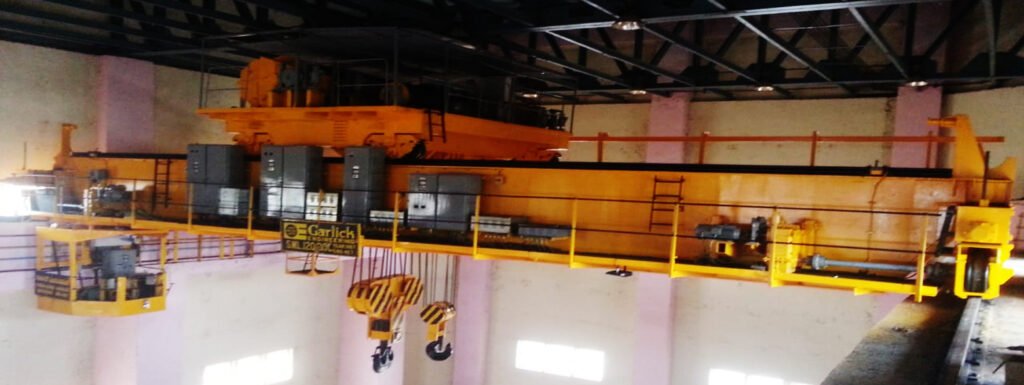

Crane Health Assessment
A Crane Health Assessment is a comprehensive evaluation process designed to assess the overall condition of a crane to ensure it is safe, reliable, and operating efficiently. This assessment helps identify any potential issues, wear and tear, or failures before they lead to accidents or costly downtime. It typically involves both visual inspections and performance testing, and it may require specialized equipment and expertise to diagnose mechanical, electrical, and structural problems.
A Crane Health Assessment is a vital tool for maintaining the safety, efficiency, and longevity of cranes. By conducting regular assessments, crane owners and operators can minimize the risk of accidents, ensure compliance with regulations, and reduce the likelihood of costly downtime.
Initial Documentation Review
Before performing physical inspections, it’s important to review the crane’s history, maintenance records, and any previous assessments or repairs. This gives an overview of the crane’s usage and helps highlight areas that may need closer attention.
- Maintenance Logs: Review logs for previous repairs, servicing, and inspections.
- Manufacturer’s Specifications: Check the crane’s manual for manufacturer-recommended service intervals, load limits, and other specifications.
- Inspection Reports: Review past inspection findings to determine recurring issues or critical concerns.
Visual Inspection
A thorough visual inspection of the crane helps to identify obvious issues that could pose safety risks.
- Structural Integrity: Check for cracks, deformations, or corrosion in the crane’s frame, boom, counterweights, and undercarriage. Look for signs of stress, such as bent or cracked structural components.
- Wire Ropes: Inspect the wire ropes for signs of fraying, corrosion, or broken strands. Any significant damage to the ropes warrants immediate replacement.
- Hydraulic Hoses and Cylinders: Look for leaks, wear, or signs of damage to hydraulic hoses, cylinders, and fittings.
- Boom and Mast: Examine the boom or mast for wear, cracks, or any signs of fatigue. Pay special attention to the joints and pivot points.
- Brakes and Safety Devices: Check the crane’s braking systems for wear or failure. Also, ensure that all safety devices, such as load indicators, limit switches, and emergency stop buttons, are operational.
Mechanical Health
Mechanical systems are essential for the crane’s operation, and a thorough evaluation is required to ensure they are functioning properly.
- Winches and Hoists: Check for wear or malfunctions in the hoisting mechanism. This includes evaluating the motor, gearbox, and drum for smooth operation and proper tension.
- Motors and Gearboxes: Inspect motors for signs of wear, overheating, or irregular sounds. Also, check gearboxes for proper lubrication and any signs of leakage.
- Bearings and Pulleys: Inspect bearings and pulleys for excessive play, wear, or noise. Any sign of excessive heat, vibration, or uneven movement may indicate the need for replacement.
- Suspension System: For mobile cranes, ensure that the suspension system, including tires, tracks, and axles, is in good condition and capable of supporting the load.
- Hydraulic System: Check for hydraulic fluid leaks, low pressure, or contamination. Assess the hydraulic pump and valves for proper functioning, and ensure the hydraulic fluid is at the correct level and temperature.
- Jib/Outriggers: Inspect the jib or outriggers for wear and tear, ensuring they are properly aligned and capable of bearing the crane’s load.
Electrical Systems Assessment
Electrical systems are critical for controlling crane functions, and their integrity must be checked regularly.
- Control Systems: Test the crane’s electrical control systems, including the joystick, switches, and other operator interface components. Ensure that all buttons, levers, and dials are responsive and functioning correctly.
- Wiring and Connections: Inspect electrical wiring for signs of damage, fraying, or wear. Look for exposed or corroded connections that could lead to electrical failures.
- Sensors and Safety Systems: Test load cells, proximity sensors, and limit switches to ensure they are reading and reporting correctly. This is particularly important for weight monitoring and ensuring the crane is not overloaded.
- Battery and Charging System: If the crane has an electric or hybrid motor, check the battery condition, connections, and charging system for any issues.
Load Testing and Performance Evaluation
Load testing is one of the most critical parts of a crane health assessment. It ensures that the crane can handle its rated load capacity safely and effectively.
- Static Load Test: Conduct a static load test by gradually applying the maximum load capacity and observing the crane’s stability, performance, and response. This should be done in accordance with the manufacturer’s guidelines.
- Dynamic Load Test: Evaluate the crane’s performance while it is in motion under load. This involves checking how the crane handles lifting, lowering, and swinging operations while under load. Unusual vibrations, jerky movements, or poor response could indicate issues with the crane’s mechanical systems.
- Boom Angle and Reach Testing: Ensure that the crane can operate within its specified boom angles and reach distances. Test the full range of the crane to ensure that it doesn’t encounter any interference or performance issues.
Operator and Safety Systems Evaluation
A crane health assessment includes verifying that safety features are functioning correctly and that operators are using the crane in a safe manner.
- Operator Controls: Ensure that all control systems are responsive, and the operator can operate the crane smoothly. Conduct tests of emergency stop functions, load indicators, and alarms.
- Safety Features: Check the crane’s safety features, such as load moment indicators (LMI), anti-two block systems, boom angle indicators, and weight monitoring systems.
- Cab and Operator Comfort: Evaluate the crane’s cab for comfort, visibility, and accessibility. Ensure that the operator has clear sightlines and that all controls are ergonomically placed for ease of use.
Recommendations and Action Plan
After completing the crane health assessment, the results should be documented, and a clear action plan should be created.
- Immediate Repairs: If any critical safety issues or operational malfunctions are found, immediate repairs or parts replacement should be scheduled.
- Preventive Measures: For minor issues or wear, preventive measures (such as lubrication, recalibration, or tightening loose components) can be applied to avoid future problems.
- Scheduled Maintenance: Set a schedule for follow-up inspections, repairs, and preventive maintenance.
